NDB Symmetrical T-Antennas

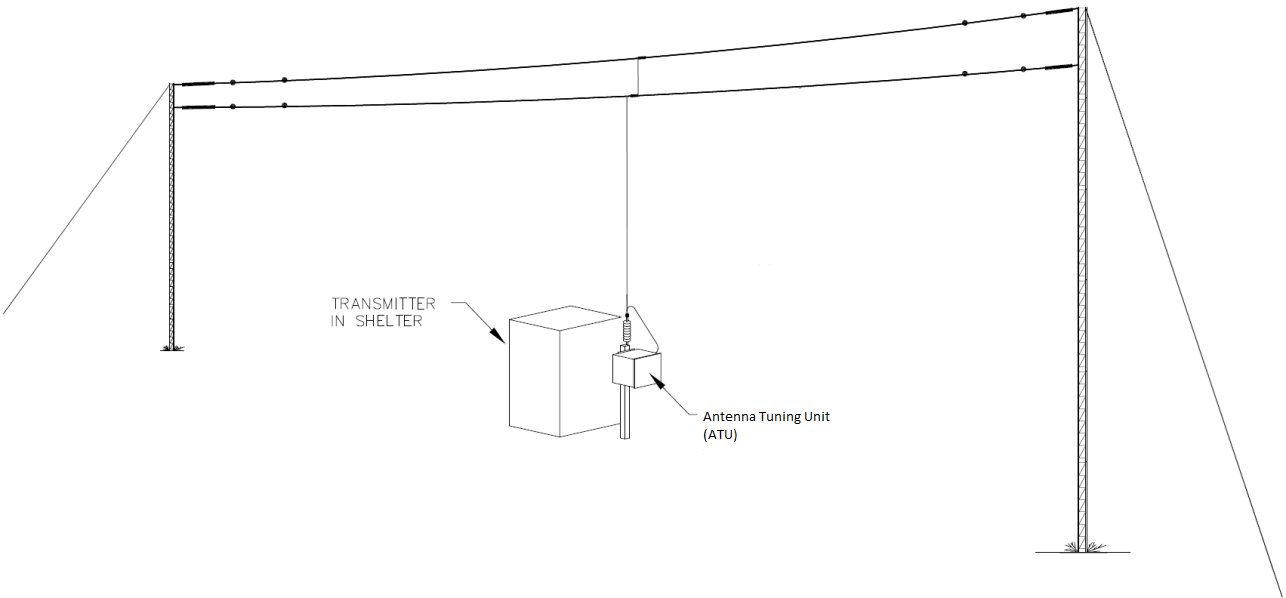

The Symmetrical "T" Antenna is the optimal land based antenna system when adequate space is available.
A Low Power Symmetrical "T" Antenna is recommended for use with a 125 - 250 Watt transmitter, if sufficient land is available. A High Power Symmetrical "T" Antenna is recommended for use with a 500-1000 Watt transmitter, if sufficient land is available.
The Symmetrical T-Antennas are available in following heights:
  -   30Ft (9m) Low Profile
  -   60Ft (18m) Low and High Profile
  -   90Ft (27m) Low and High Profile
  -   120Ft (37m) Low and High Profile
  -   200Ft (61m) Low and High Profile
The standard Symmetrical "T" Antenna is supported by 10ft sections of above ground level Support Towers placed 300ft apart. Range depends on the field strength required, the ground condition, and the power radiated. However the higher the antenna a better efficiency and therefore better coverage will be obtained.


NDB Mast Antennas

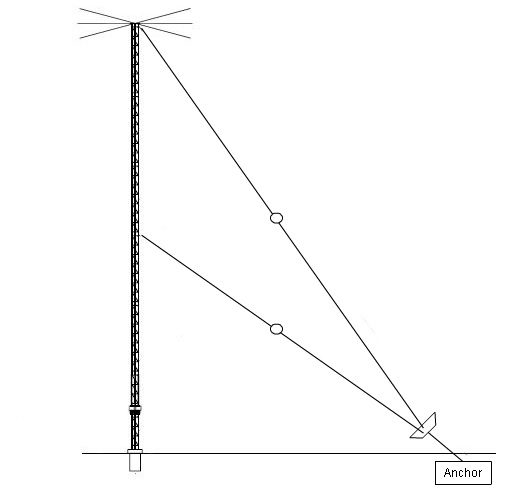

A Mast Antenna can be used if sufficient land is not available for a Symmetrical "T" Antenna. A portion of the top set of guy wires is used to form the top hat for this antenna
A Mast Antenna is electrically inferior to a Symmetrical "T" Antenna of the same height due to the decreased top loading. Top loading serves two purposes; decreasing the input reactance and consequently the voltage on the antenna and increasing the effective height.

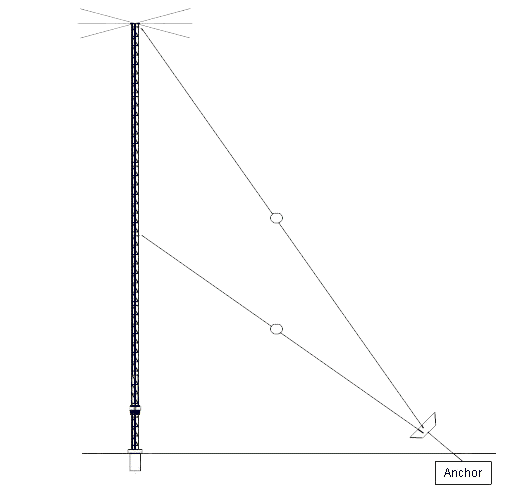

34ft Mast antenna is a self-supporting and has capacitive top loading and inductive center loading. It is designed for use where land area is at a premium and low frequency operation is desired. A perimeter wire around the top hat radius enables the antenna to reach all frequencies desired. It is easy to install with one person. Other Mast antennas are Guyed (i.e. not self-supporting) herefore require more space for installation. The Symmetrical T-Antennas are available in following heights:
  -   34Ft (11m) Self-suporting Mast Antenna
  -   40Ft (12.19m) Guyed Mast Antenna
  -   50Ft (15.24m) Guyed Mast Antenna
  -   60Ft (18.29m) Guyed Mast Antenna
  -   90Ft (27.4m) Guyed Mast Antenna
  -   120Ft (36.54m) Guyed Mast Antenna
  -   145Ft (44.2m) Guyed Mast Antenna


NDB Helipad H-Antenna (Offshore)

This Longwire antenna is designed to be installed around the perimeter of a helideck. The Helideck NDB Antennas give the approaching pilots the signal they need to find the helideck every time in any weather. The Helipad Antenna is a longwire antenna designed to be installed around the perimeter of a helideck. The kit includes antenna wire, insulators, 8 support poles and hardware.

The recommended distance between support arms is roughly 46 ft. (14m) apart for a 300 ft. (92m) antenna. Shorter lengths require fewer support poles. Support arms are required at each corner or angle of the deck. Antenna comes with 8 support poles.

Please see below "ORDERING INFORMATION" for diffrent options and relevant part numbers.

ORDERING INFORMATION

PART NO. ITEM DESCRIPTION PRICE
SLF10027 Low-Power Symmetrical T Antenna 30 - 200 ft. TBA
SLF10063 High-Power Symmetrical T Antenna 90-120 ft. TBA
SLF10015 34 ft. self-supporting Mast Antenna - Offshore TBA
SLF10014 34 ft. self-supporting Mast Antenna - Land TBA
SLF10080 40 ft. Mast Antenna TBA
SLF10002 50 ft. Guyed Mast Antenna (SLF10003 for 50 ft. Mast Antenna High Wind) TBA
SLF10057 60 ft. Guyed Mast Antenna TBA
SLF10005 90 ft. Guyed Mast Antenna TBA
SLF10001 120 ft. Guyed Mast Antenna TBA
SLF10066 145 ft. Guyed Mast Antenna TBA
SLF10022 Standard Helipad Antenna TBA
SLF10023 Helipad Antenna to CAP437 TBA

Please contact us for other options and also price information
