VHF Ground to Air AM Base Stations

  -   Transceiver VHF AM TR-7750
  -   Receiver VHF RA-7203
  -   Transmitter VHF AM TA-7650

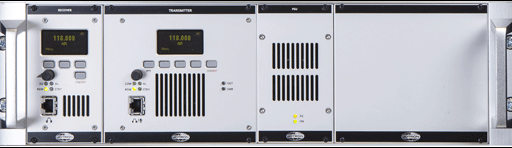

The 7000 series VHF Multimode Digital Radio, combines excellent RF performance in congested areas, with advanced digital signalling technique, to cover the future radio communication needs for civilian authorities. Totally controlled by an ultra fast digital signal processor, makes the radio the ultimate choice for all professional ground to air communication, with easy control, no internal tuneable parts and improved reliability. The 7000 series comprises the TR-7750 Transceiver, the RA-7203 Receiver and the TA-7650 Transmitter. Carefully designed to be the most compact and lightest radio available, and the complete modular assembly, enable a variety of configuration possibilities, according to customer specific requirements.

The radio control facilities, are simplified by using SNMP over UDP, together with Ethernet interface, or via the known serial interfaces RS-232 or RS-485. Prepared for future VoIP facilities, the radios are supplied as standard with 4W E&M and in-band signalling voice connection. Complying to known international standards and recommendations, the radio is simply the choice for the future.

Multi/Single Channel VHF/AM Transceiver in 19" sub-rack. 3U high. 99 Ch. fast recall store. AM voice. 25 and 8.33 kHz channel spacing. 118-137 MHz. LAN ( SNMP ), RS-232 or RS-485 serial interface, full digital control and diagnostics. Operates from AC mains with auto fail to 24V DC. Power supply included.

Multi/Single Channel VHF/AM Receiver in 19" sub-rack. 3U high. 99 Ch. fast recall store. AM voice. 25 and 8.33 kHz channel spacing. 118-137 MHz. LAN ( SNMP ), RS-232 or RS-485 serial interface, full digital control and diagnostics. Operates from AC mains with auto fail to 24V DC. Power supply included.

Multi/Single Channel VHF/AM Transmitter in 19" sub-rack. 3U high. 99 Ch. fast recall store. AM voice. 25 and 8.33 kHz channel spacing. 118-137 MHz. LAN ( SNMP ), RS-232 or RS-485 serial interface, full digital control and diagnostics. Internal in-band interface. Operates from AC mains with auto fail to 24V DC. Power supply included.

Please see below "ORDERING INFORMATION" for diffrent options and relevant part numbers.

ORDERING INFORMATION

PART NO. ITEM DESCRIPTION PRICE
84700 TR-7750 VHF/AM Digital Multimode Transceiver 50W TBA
84500 RA-7203 VHF/AM Digital Multimode Receiver TBA
84000 TA-7650 VHF/AM Digital Multimode Transmitter 50W TBA
82452 Sub Rack for RA-7203 TBA
82453 Sub Rack for TA-76xx w/PSU TBA
98825 Sub Rack complete TBA
86907 KRONE frame for Sub Rack TBA
84357 VDL - VHF Data Link Applications (for TR-7650only) Enables the physical capability of the radio to receive and transmit VDL mode 2 packets using D8PSK modulation with 31.5 kbit/s data. TBA
84358 Inband signalling (for TA-7650/25/10 and RA-7203 Both as transceiver) T7650/25/107650/25/107650/25/10) Inband signalling option that enables keying of the transmitter with a user selectable inband tone and selectable inband tones on the receiver to signal squelch status. TBA
84360 118-144 MHz Extended frequency range TBA
84361 118-156 MHz Extended frequency range TBA
84362 Frequency Modulation (FM) TBA
93809 Carrier offset 2,3,4 and 586209 VoIP TBA
86884 Frequency Modulation (AM-MSK) TBA
86885 Telsa Cavity Control TBA
81860 ACU Antenna Change Over Unit , Main to Standby, 7000 series Multimode TBA
86244 Spare Part Modules TBA
82417 PSU 7002 Power Supply TBA
82716 7000 to 7000 Multimode Radio interface, To be used when interfacing 7000 Digital Multimode Radio to previous 7000 series. TBA

Please contact us for other options and also price information
