VHF Ground to Air AM Mobile Radio

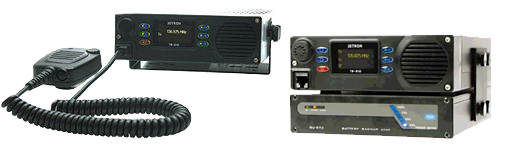

  -   VHF AM Mobile Radio TR-810


TASHKOO can also offer a compact multi purpose VHF AM transceiver. The radio is designed to be the recommended solution for applications where remote control of the radio is not needed. Flexible to AC or DC mains, with a battery pack solution.

These applications are ground services at airports, vehicle installation, and portable emergency purposes. With ETSI, FCC and Marine standard approvals, this radio is also the natural choice for offshore installations, heli-decks and other applications where ground-to-air communication is essential. The unique RF technology and components conforming this high quality radio, utilize the battery capacity to a maximum.

The control functions are easy and logical, with background lighting in the LCD display and the keyboard. In addition, the radios can also be set up via a PC. Other features are terminals for external loudspeaker and voice recording facilities.

TR-810 is designed to meet future demands for a lightweight, rugged and flexible radio, specially designed for vehicle and desk-top applications. The flexible design is achieved by making the Operators Control Panel (OCP) detachable from the compact base unit. Communication between the two units is via standard CAT-5 cable. By being able to separate the OCP from the base unit, it opens up for several user applications..

Please see below "ORDERING INFORMATION" for diffrent options and relevant part numbers.

ORDERING INFORMATION

PART NO. ITEM DESCRIPTION PRICE
83200VE TR-810 VE Transceiver Vehicle version 10W , includes 83200 and 86417 TBA
83200DE TR-810 DE Transceiver Desktop version, includes 83200 and 86419 TBA
83200MP TR-810 MP Transceiver Man Portable version, includes 83200 and 86416 TBA
83200LR TR-810 LR Transceiver Last Resort version, includes 83200 and 86418 TBA
83200SR TR-810 SR Transceiver Sub Rack version, includes 83200 and 86898 TBA
83200OF TR-810 OF Transceiver Offshore version, includes 83200 and 86420 TBA
83200 TR-810 Transceiver Base Unit TBA
86416 TR-810 MPAccessories (Microphone, battery backup, carrying bag, antenna, antenna cable, antenna bracket, fasten bracket, interconnection cable, DC power cable,power AC/DC w/connector and manual) TBA
86417 TR-810 VE Accessories (Microphone, antenna, antenna adaptor FME-BMC, external loudspeaker, DC cable, 5m cable, console bracket, front module bracket and manual) TBA
86418 TR-810 MPAccessories (Microphone, battery backup, power AC/DC w/connector, 220V AC cable w/plugs, antenna adaptor BNC, console bracket, fasten bracket, support knob and manual) TBA
86419 TR-810 DE Accessories (Microphone, power AC/DC, front module bracket, antenna connector BNC-RG213, console bracket and manual) TBA
86420 TR-810 OF Accessories (Microphone, AC/DC power, antenna adapter, 220V AC cable, 5m cable, console bracket, console cover plate, front module bracket, front cover plate with flange and manual) TBA
86898 TR-810 SR Accessories (incl. 19?/2HU enclosure, Microphone, 220V AC cable w/plugs, DC plug and manual) TBA
91794 Antenna CXL3-1LW for maritime applications TBA
97898 Coax cable RG-213 - 30m TBA
98244 N-connector for RG-213 coax cable TBA
82907 Antenna 1/2? flammable retardant cable (offshore) TBA
82908 N-connector  for 1/2? flammable retardant cable TBA
80322 Antenna lightning protector TBA
80592 RG-214 Coax Cable, per meter TBA
86273 RG-214 N-male connector TBA
85558 External loudspeaker TBA
84317 Cable 5m extension between front and transceiver module TBA
87130 BU-872 TBA
82768T Spare, Front Module (OCP) TBA
82769T Spare, Transceiver Module TBA
84092 Spare, Handheld microphone w/bracket TBA
97976 Spare, Antenna whip for car applications TBA
80577 Spare, Antenna adapter BNC ? N TBA
84329 Spare, Cable DC w/fuse TBA
84330 Spare, Power AC/DC w/connector TBA
85636 Spare, Carrying bag TBA
84545 Spare, DC/DC converter with separation TBA
86875 Spare, Antenna for MP TBA

Please contact us for other options and also price information
